Maintenance and care Do-it-yourself maintenance Checking and replacing fuses

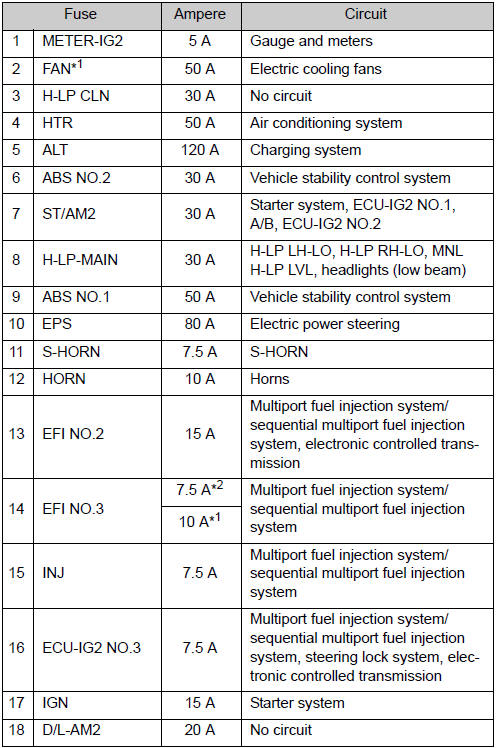

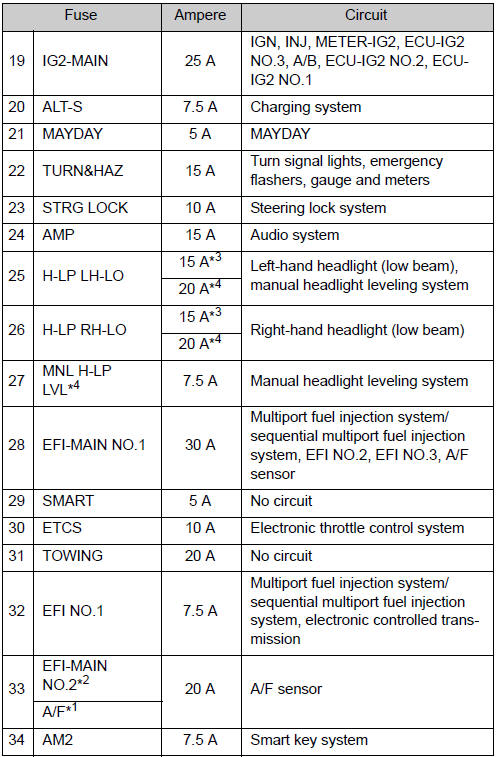

Fuse layout and amperage ratings

■ Engine compartment

Fuse block Fuse block

Fuse block on the back of the cover Fuse block on the back of the cover

*1: 3.5 L V6 (2GR-FE) engine

*1: 3.5 L V6 (2GR-FE) engine *2: 2.5 L 4-cylinder (2AR-FE) engine *3: Vehicles with halogen headlight *4: Vehicles with discharge headlight

■ Under the instrument panel

Under the instrument panel Under the instrument panel

■After a fuse is replaced

■After a fuse is replaced

●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement.

●If the replaced fuse blows again, have the vehicle inspected by your Toyota dealer.

■If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

■When replacing light bulbs

Toyota recommends that you use genuine Toyota products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-genuine parts or parts not designed for this vehicle may be unusable.

CAUTION
■To prevent system breakdowns and vehicle fire Observe the following precautions.

Failure to do so may cause damage, and possibly a fire or injury.

●Never use a fuse of a higher amperage rating than that indicated, or use any other object in place of a fuse.

●Always use a genuine Toyota fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

This can cause extensive damage or even fire.

●Do not modify the fuses or fuse boxes.

NOTICE
■Before replacing fuses Have the cause of electrical overload determined and repaired by your Toyota dealer as soon as possible.

    More about Checking and replacing fuses:

    Fuse layout and amperage ratings
