Ignition or starter switch assy

REPLACEMENT

  1. REMOVE INSTRUMENT PANEL SUB−ASSY UPPER

  2. REMOVE IGNITION OR STARTER SWITCH ASSY

  1. Disconnect the ignition switch connector and unlock warning switch connector.

  2. Remove the clamp.

  3. Remove the 2 screws and ignition switch.

Remove ignition or starter switch assy Remove ignition or starter switch assy

INSPECTION

1. INSPECT IGNITION OR STARTER SWITCH ASSY

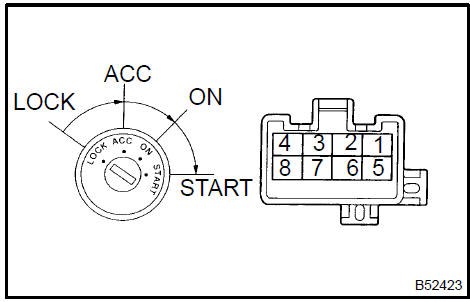

a. Inspect the ignition switch continuity.

Standard

:

If the continuity is not as specified, replace the switch.

If the continuity is not as specified, replace the switch.

Inspect ignition or starter switch assy Inspect ignition or starter switch assy
