 Service Manual
Audio & visual system
Navigation ecu

REPLACEMENT

HINT: COMPONENTS:

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

  2. REMOVE SPARE WHEEL COVER ASSY

  3. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB−ASSY RH

  4. REMOVE LUGGAGE COMPARTMENT TRIM HOOK No.1

  5. REMOVE REAR FLOOR FINISH PLATE

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH

  7. REMOVE NAVIGATION ECU

  1. Disconnect the connectors and remove the 2 clamps.

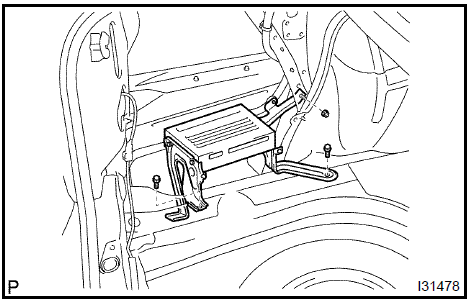

  1. Remove the nut and 2 bolts, then remove the navigation ECU.

8. REMOVE DISC PLAYER BRACKET

8. REMOVE DISC PLAYER BRACKET

  1. Remove the 2 screws and disc player bracket.

9. REMOVE DISC PLAYER BRACKET No.2

9. REMOVE DISC PLAYER BRACKET No.2

  1. Remove the 2 screws and disc player bracket No.2.
