Rear suspension arm assy No.2 LH

REPLACEMENT

HINT: COMPONENTS

  1. REMOVE REAR WHEEL

  2. REMOVE EXHAUST PIPE ASSY CENTER

  1. 1MZ−FE / 3MZ−FE engine:

  2. 2AZ−FE engine:

  1. REMOVE STABILIZER BAR REAR

  2. SEPARATE REAR SUSPENSION ARM ASSY No.1 LH

  3. SEPARATE REAR SUSPENSION ARM ASSY No.1 RH

HINT: Separate the RH side by the procedures with the LH side.

  1. SEPARATE REAR SUSPENSION ARM ASSY No.2 LH

  2. SEPARATE REAR SUSPENSION ARM ASSY No.2 RH

HINT: Separate the RH side by the procedures with the LH side.

  1. SEPARATE STRUT ROD ASSY REAR

  2. REMOVE REAR SUSPENSION MEMBER SUB−ASSY

  3. REMOVE REAR SUSPENSION ARM ASSY No.2 LH

a. Remove the bolt and disconnect the rear suspension arm No. 2 (inner side).

b. Remove the bolt, nut and the rear suspension arm No. 2

b. Remove the bolt, nut and the rear suspension arm No. 2 (outer side) from rear axle carrier.

HINT: Keep the nut fixed while loosening and removing the bolt.

11. INSTALL REAR SUSPENSION ARM ASSY No.2 LH

11. INSTALL REAR SUSPENSION ARM ASSY No.2 LH

a. Install the rear suspension arm No. 2 (inner side) with the bolt and temporarily tighten the bolt.

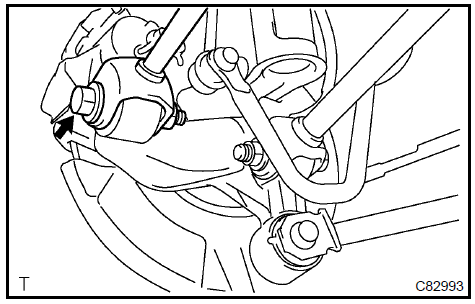

b. Set the suspension arm in the position in the illustration

b. Set the suspension arm in the position in the illustration and fully tighten the bolt.

Torque: 100 Nm (1,020 kgfcm, 74 ftlbf)

  1. INSTALL REAR SUSPENSION MEMBER SUB−ASSY

  2. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY No.1 LH

  3. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY No.1 RH

HINT: Temporarily tighten the RH side by the procedures with the LH side.

  1. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY No.2 LH

  2. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY No.2 RH

HINT: Temporarily tighten the RH side by the procedures with the LH side.

  1. TEMPORARILY TIGHTEN STRUT ROD ASSY REAR

  2. INSTALL STABILIZER BAR REAR

  3. STABILIZE SUSPENSION

  4. FULLY TIGHTEN REAR SUSPENSION ARM ASSY No.1 LH

  5. FULLY TIGHTEN REAR SUSPENSION ARM ASSY No.1 RH

HINT: Fully tighten the RH side by the procedures with the LH side.

  1. FULLY TIGHTEN REAR SUSPENSION ARM ASSY No.2 LH

  2. FULLY TIGHTEN REAR SUSPENSION ARM ASSY No.2 RH

HINT: Fully tighten the RH side by the procedures with the LH side.

  1. FULLY TIGHTEN STRUT ROD ASSY REAR

  2. INSTALL EXHAUST PIPE ASSY CENTER

  1. 1MZ−FE / 3MZ−FE engine

  2. 2AZ−FE engine

  1. INSTALL REAR WHEEL Torque: 103 Nm (1,050 kgfcm, 76 ftlbf)

  2. INSPECT REAR WHEEL ALIGNMENT
