 XV30 (2002–2006) Service Manual
Engine control system
Accelerator pedal assy (1MZ−FE/3MZ−FE)

REPLACEMENT

1. REMOVE ACCELERATOR PEDAL ASSY

  1. Disconnect the accelerator position connector.

  2. Remove the 2 bolts and the accelerator pedal.

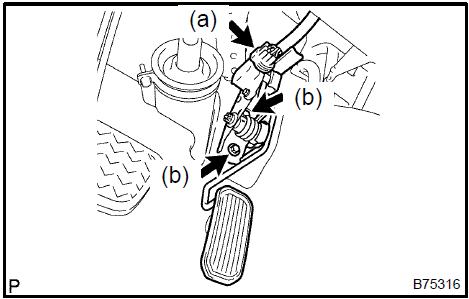

Remove accelerator pedal assy

2. INSTALL ACCELERATOR PEDAL ASSY

  1. Connect the accelerator position connector.

  2. Install the accelerator pedal with the 2 bolts.

    Torque: 7.5 N·m (76 kgf·cm, 66 in.·lbf)

 Install accelerator pedal assy
