Thermostat (2AZ−FE)(From July, 2003)

REPLACEMENT

  1. DRAIN ENGINE COOLANT

  2. REMOVE FAN AND GENERATOR V BELT

  3. REMOVE GENERATOR ASSY

  4. DISCONNECT RADIATOR HOSE INLET

  5.  REMOVE WATER INLET

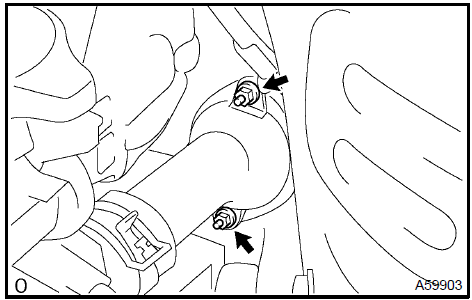

a. Remove the 2 nuts and disconnect the water inlet from the cylinder block.


Remove water inlet

  1. REMOVE THERMOSTAT

  2. INSTALL THERMOSTAT

  1. Install a new gasket to the thermostat.

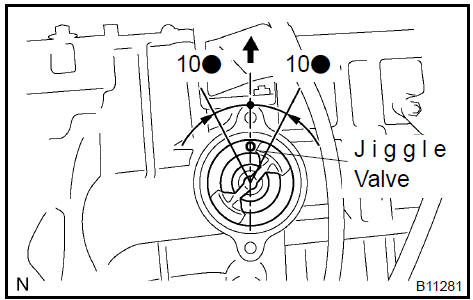

  2.  Install the thermostat with the jiggle valve facing up.

    HINT: The jiggle valve may be set within 10 on either side of the prescribed position.

 Install thermostat  Install thermostat

8. INSTALL WATER INLET

a. Install the water inlet with the 2 nuts.

Torque: 9.0 Nm (92 kgfcm, 80 in.lbf)

  1. INSTALL RADIATOR HOSE INLET

  2. INSTALL GENERATOR ASSY

  3.  INSTALL FAN AND GENERATOR V BELT

  4. ADD ENGINE COOLANT

  5. CHECK FOR ENGINE COOLANT LEAKS
