 Service Manual
Cooling
Water pump assy (1MZ−FE/3MZ−FE)

REPLACEMENT

  1. DRAIN ENGINE COOLANT

  2. REMOVE FRONT WHEEL RH

  3. REMOVE FRONT FENDER APRON SEAL RH

  4. REMOVE V BELT No. 1

  5. REMOVE VANE PUMP V BELT

  6. REMOVE ENGINE MOVING CONTROL ROD

  7. REMOVE ENGINE MOUNTING STAY No.2 RH

  8. REMOVE GENERATOR BRACKET No.2

  9. REMOVE CRANKSHAFT PULLEY

  10. REMOVE TIMING BELT No.1 COVER

  11. REMOVE TIMING BELT No.2 COVER

  12. REMOVE ENGINE MOUNTING BRACKET RH

  13. REMOVE TIMING BELT GUIDE No.2

  14. REMOVE TIMING BELT

  15. REMOVE TIMING BELT IDLER SUB−ASSY No.2

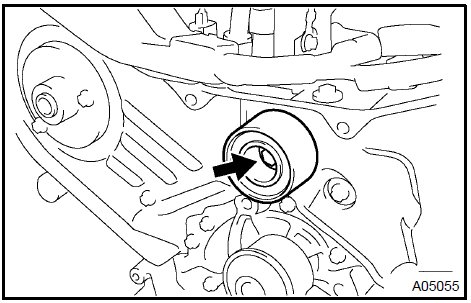

a. Remove the bolt and timing belt idler.


Remove timing belt idler sub-assy No.2

  1. REMOVE CAMSHAFT TIMING PULLEY

  2. REMOVE TIMING BELT No.3 COVER

  3. REMOVE WATER PUMP ASSY

a. Remove the 4 bolts, 2 nuts and water pump.


Remove water pump assy

19. INSTALL WATER PUMP ASSY

a. Install a new gasket and the water pump with the 4 bolts and 2 nuts.

Torque: 8 Nm (82 kgf cm, 71 in. lbf)

  1. INSTALL TIMING BELT No.3 COVER

  2. INSTALL CAMSHAFT TIMING PULLEY

  3. INSTALL TIMING BELT IDLER SUB−ASSY No.2 Torque: 43 Nm (438 kgfcm, 32 ftlbf)

  4.  INSPECT TIMING BELT

  5. INSTALL TIMING BELT

  6. INSTALL TIMING BELT GUIDE No.2

  7.  INSTALL ENGINE MOUNTING BRACKET RH Torque: 28 Nm (286 kgfcm, 21 ftlbf)

  8. INSTALL TIMING BELT No.2 COVER

  9. INSTALL TIMING BELT No.1 COVER

  10. INSTALL CRANKSHAFT PULLEY

  11. INSTALL GENERATOR BRACKET No.2 Torque: 28 Nm (286 kgfcm, 21 ftlbf)

  12. INSTALL ENGINE MOUNTING STAY No.2 RH

  13. INSTALL ENGINE MOVING CONTROL ROD

  14. INSTALL VANE PUMP V BELT

  15.  INSTALL V BELT No. 1

  16.  INSPECT DRIVE BELT TENSION

  17. ADD ENGINE COOLANT

  18.  CHECK FOR ENGINE COOLANT LEAKS

  19. INSTALL FRONT WHEEL RH

INSPECTION

1. INSPECT WATER PUMP ASSY

  1. Visually check the drain hole for coolant leakage.

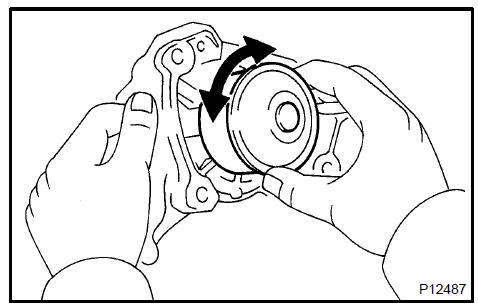

  2.  Turn the pulley, and check that the water pump bearing moves smoothly and noiselessly.

If the bearing moves roughly or noisily, replace the water pump.


Inspect water pump assy
