 XV50 (2012–2017) Owners Manual
Before driving » Opening, closing and locking the doors and trunk » Antenna location and effective range
Alarms and warning indicators

A combination of exterior and interior alarms as well as warning lights are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures for the warning light that comes on.

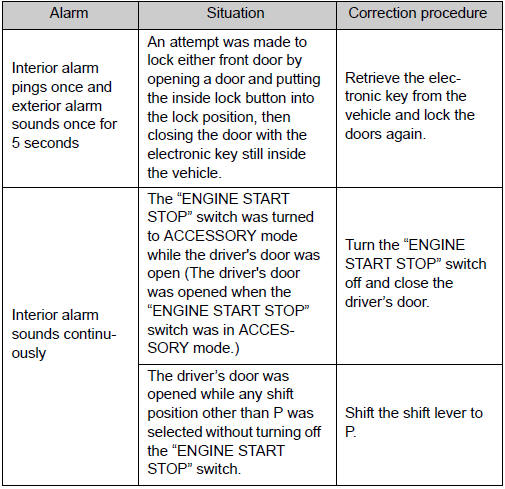

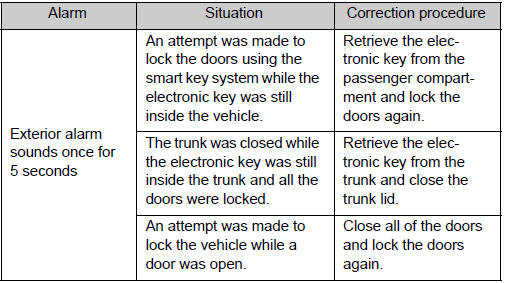

The following table describes circumstances and correction procedures when only alarms are sounded.

Security feature
