 XV30 (2002–2006) Service Manual
Automatic transmission / trans
Floor shift parking lock cable assy (ATM)

REPLACEMENT

  1. PRECAUTION

  2. DISCONNECT BATTERY NEGATIVE TERMINAL

  3. REMOVE STEERING WHEEL COVER LOWER No.2

  4. REMOVE STEERING WHEEL COVER LOWER No.3 (W/O STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)

  5. REMOVE CONNECTOR COVER (W/ STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)

  6. REMOVE STEERING WHEEL COVER LOWER No.3 (3 SPOKE STEERING WHEEL ASSY)

  7. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

  8. REMOVE HORN BUTTON ASSY

  9. REMOVE STEERING WHEEL ASSY

    SST 09950−50013 (09951−05010, 09952−05010, 09953−05020, 09954−05021)

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL

  11. REMOVE STEERING COLUMN COVER UPR

  12. REMOVE FRONT DOOR SCUFF PLATE LH

  13. REMOVE COWL SIDE TRIM SUB−ASSY LH

  14. REMOVE INSTRUMENT PANEL COIN BOX SUB−ASSY

  15. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH

  16. REMOVE INSTRUMENT PNL INSERT SUB−ASSY LWR LH

  17. REMOVE CONSOLE BOX CARPET

  18. REMOVE RR CONSOLE BOX

  19. REMOVE FRONT ASH RECEPTACLE ASSY (W/ ASHTRAY)

  20. REMOVE CONSOLE BOX FRONT

  21. REMOVE AIR DUCT REAR No.2

  22. REMOVE AIR DUCT REAR No.1

  23. REMOVE CONSOLE BOX DUCT No.1

  24. REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY

  1. Disconnect the parking lock cable end from the lever pin of the floor shift assembly.

  1. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly and clamp.

  1. Disconnect the cable clamp.

  2. Turn the ignition switch to ACC or ON position.

  1. Using a screwdriver, remove the cable from the upper bracket.

25. INSTALL FLOOR SHIFT PARKING LOCK CABLE

25. INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY

  1. Turn the ignition switch to ACC or ON.

  2. Connect the cable to the upper bracket.

  1. Connect the cable clamp.

  1. Insert the slide cap into the through hole and install.

  1. Set the accessory tool.

  1. Shift the shift lever to P position and turn the ignition switch to LOCK position. (TMC made)

  2. Shift the shift lever to N position and turn the ignition switch to ACC position. (TMMK made)

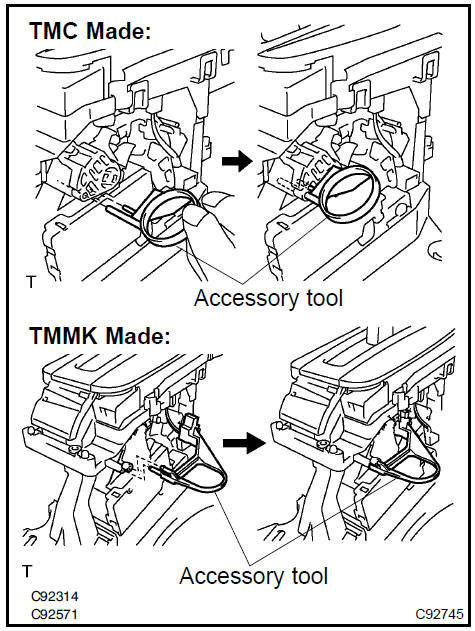

  3. Set the accessory tool to the shift lock control unit assy.

Accessory tool parts No.: TMC Made: 33693−33010 TMMK Made: 33693−06010

  1. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.

  1. Insert the lever pin into the hole in the floor shift parking lock cable.

  1. Lock the lock key.

HINT:

  • At this time, the shift lever should be in P position and the ignition key should be set to LOCK position. (TMC Made)

  • At this time, the shift lever should be in N position and the ignition key should be set to ACC position. (TMMK Made) i. Remove the accessory tool.

Accessory tool parts No.: TMC Made: 33693−33010 TMMK Made: 33693−06010

  1. CHECK KEY INTERLOCK OPERATION

  2. INSTALL CONSOLE BOX DUCT No.1

  3.  INSTALL AIR DUCT REAR No.1

  4. INSTALL AIR DUCT REAR No.2

  5. INSTALL CONSOLE BOX FRONT

  6. INSTALL FRONT ASH RECEPTACLE ASSY (W/ ASHTRAY)

  7. INSTALL RR CONSOLE BOX

  8. INSTALL CONSOLE BOX CARPET

  9. INSTALL INSTRUMENT PNL INSERT SUB−ASSY LWR LH

  10. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH

  11. INSTALL INSTRUMENT PANEL COIN BOX SUB−ASSY

  12. INSTALL COWL SIDE TRIM SUB−ASSY LH

  13. INSTALL FRONT DOOR SCUFF PLATE LH

  14. INSTALL STEERING COLUMN COVER UPR

  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL

  16. INSTALL STEERING WHEEL ASSY

  17. INSPECT STEERING WHEEL CENTER POINT

  18. INSTALL HORN BUTTON ASSY

  19. INSTALL STEERING WHEEL COVER LOWER No.2

  20.  INSTALL STEERING WHEEL COVER LOWER No.3 (W/O STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)

  21. INSTALL CONNECTOR COVER (W/ STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)

  22. INSTALL STEERING WHEEL COVER LOWER No.3 (3 SPOKE STEERING WHEEL ASSY)

  23. CONNECT BATTERY NEGATIVE TERMINAL

  24. INSPECT SRS WARNING LIGHT
