 Service Manual
Seat
Front power seat control system (From July, 2003)

ON−VEHICLE INSPECTION

1. CHECK POWER SEAT FUNCTION

a. Check the basic functions.

1. Operate the power seat switches and check to make sure each seat function works:

  • Sliding

  • Front vertical

  • Rear vertical

  • Reclining

  • Lumbar support (drivers seat only)

Check power seat function Check power seat function

2. CHECK POWER SEAT MOTOR ASSY (SLIDING, FRONT VERTICAL, REAR VERTICAL AND RECLINING FUNCTIONS)

a. Check the PTC operation inside the power seat motor.

HINT: The PTC thermistors resistance increases when the power seat switch is held down even after the power seat has been moved to the maximum in one direction. after the resistance increases, current is shut off to prevent a short circuit.

NOTICE: Perform steps 1. to 4. for the full range of motion for each power seat function.

  1. Choose a power seat function. Operate the power seat switch and move the seat to the maximum in one direction. Keep the seat in that position for approximately 60 seconds.

  2. Operate the power seat switch again and continue to try to move the seat in the same direction as in step 1.. Measure the amount of time elapsed before the electrical current is automatically cut. Check if electrical current has shut off by making sure the sound of the motor has stopped.

    Standard: 4 to 90 seconds

  3. After the current has stopped, release the power seat switch and wait for approximately 60 seconds.

  4. Operate the same power seat switch and move the seat to the opposite extreme of the direction in step 1.. Check that the motor operates.

  5. Repeat steps 1. to 4. for the remaining power seat functions.

3. Drivers seat only: CHECK LUMBAR SUPPORT ADJUSTER ASSY LH

a. Check the PTC operation inside the power seat motor.

NOTICE: The inspection should be performed with the seat installed in the vehicle.

  1. Operate the lumbar support switch and move the lumbar support to either the foremost or rearmost position. Keep the seat in that position for approximately 60 seconds.

  2. Operate the lumbar support switch again and continue to try to move the lumbar support in the same direction as in step 1.. Measure the amount of time elapsed before the electrical current is automatically cut. Check if electrical current has shut off by making sure the sound of the motor has stopped.

    Standard: 4 to 90 seconds

  3. After the current has stopped, release the lumbar support switch and wait for approximately 60 seconds.

  4. Operate the lumbar support switch and move the seat to the opposite extreme of the direction in step 1.. Check that the motor operates.

INSPECTION

1. Drivers seat: INSPECT FRONT POWER SEAT SWITCH

a. Check the resistance between the terminals when each switch is operated.

Standard:

Slide switch

Front vertical switch

Front vertical switch

Rear vertical switch

Rear vertical switch

Reclining switch

Reclining switch

If the result is not as specified, replace the switch.

If the result is not as specified, replace the switch.

2. Passengers seat:

2. Passengers seat: INSPECT FRONT POWER SEAT SWITCH

a. Check the resistance between the terminals when each switch is operated.

Standard:

Slide switch

Front vertical switch

Front vertical switch

Rear vertical switch

Rear vertical switch

Reclining switch

Reclining switch

If the result is not as specified, replace the switch.

If the result is not as specified, replace the switch.

3. INSPECT POWER SEAT SWITCH ASSY(LUMBAR

3. INSPECT POWER SEAT SWITCH ASSY(LUMBAR SUPPORT)

a. Drivers seat only: Check the resistance between the terminals when the switch is operated.

Standard

:

If the result is not as specified, replace the switch assy.

If the result is not as specified, replace the switch assy.

4. INSPECT FRONT SEAT ADJUSTER ASSY

4. INSPECT FRONT SEAT ADJUSTER ASSY

a. Check operation of the slide motor.

1. Check if the motor rotates smoothly when the battery is connected to the slide motor connector terminals.

Standard

:

If the result is not as specified, replace the slide motor.

If the result is not as specified, replace the slide motor.

b. Check operation of the vertical motor.

b. Check operation of the vertical motor.

1. Check if the motor rotates smoothly when the battery is connected to the vertical motor connector terminals.

Standard

:

If the result is not as specified, replace the vertical motor.

If the result is not as specified, replace the vertical motor.

c. Check operation of the rear vertical motor.

c. Check operation of the rear vertical motor.

1. Check if the motor rotates smoothly when the battery is connected to the rear vertical motor connector terminals.

Standard

:

If the result is not as specified, replace the rear vertical

If the result is not as specified, replace the rear vertical motor.

d. Check operation of the reclining motor.

d. Check operation of the reclining motor.

1. Check if the motor rotates smoothly when the battery is connected to the reclining motor connector terminals.

Standard

:

If the result is not as specified, replace the lifter motor.

If the result is not as specified, replace the lifter motor.

5. INSPECT LUMBAR SUPPORT ADJUSTER ASSY LH

5. INSPECT LUMBAR SUPPORT ADJUSTER ASSY LH

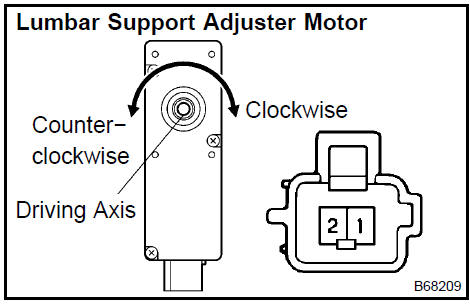

a. Driverseat only: Check operation of the lumbar support adjuster motor.

1. Check if the motor rotates smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

If the result is not as specified, replace the adjuster motor.

If the result is not as specified, replace the adjuster motor.
