REPLACEMENT

HINT: Replace the RH side by the same procedure with LH side.

  1. REMOVE REAR WHEEL

  2. DISCONNECT SKID CONTROL WIRE

a. Disconnect the connector from the skid control .


Disconnect skid control wire

  1. REMOVE REAR DISC BRAKE CALIPER ASSY LH

  2. REMOVE REAR DISC

  3. REMOVE REAR AXLE HUB & BEARING ASSY LH

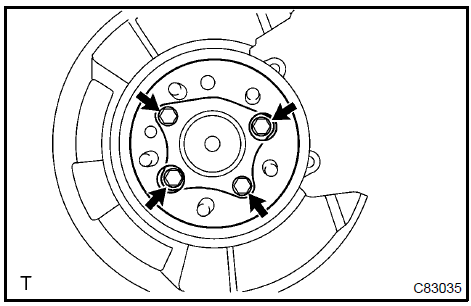

a. Remove the 4 bolts and rear axle hub & bearing assy.


Remove rear axle hub & bearing assy LH

6. REMOVE SKID CONTROL

a. Mount the rear axle hub in a soft jaw vise.

NOTICE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.

  1. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST.

  2. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control from the rear axle hub.

    SST 09520−00031 (09520−00040), 09521−00020, 09950−00020

NOTICE:

  • If a damage is inflicted to the rotor, replace the axle hub assembly.

  • Do not scratch the contacting surface of axle hub and speed .

7. INSTALL SKID CONTROL

a. Clean the contacting surface of the axle hub and a new skid control .

NOTICE: Make sure the rotor is clean

.

b. Place the speed  on the axle hub so that the connector

b. Place the speed on the axle hub so that the connector is positioned, as shown in the illustration.

c. Using SST and a press, install the skid control  to

c. Using SST and a press, install the skid control to the axle hub.

SST 09830−36010, 09950−60010 (09951−00650), 09950−70010 (09951−07100)

NOTICE:

  • Do not tap the skid control with a hammer directly.

  • Check that the skid control detection part is clean.

  • Press in the skid control straight and slowly.

8. INSTALL REAR AXLE HUB & BEARING ASSY LH

8. INSTALL REAR AXLE HUB & BEARING ASSY LH

a. Install the rear axle hub & bearing assy with the 4 bolts.

Torque: 80 Nm (816 kgfcm, 59 ftlbf)


Install rear axle hub & bearing assy LH

  1.  INSTALL REAR DISC

  2. INSTALL REAR DISC BRAKE CALIPER ASSY LH

  3. CONNECT SKID CONTROL WIRE

  4. INSTALL REAR WHEEL Torque: 103 Nm (1,050 kgfcm, 76 ftlbf)

  5. INSPECT TIRE

  6. MEASURE VEHICLE HEIGHT

  7.  INSPECT SIDE SLIP

  8.  INSPECT CAMBER

  9. INSPECT TOE−IN

  10. ADJUST CAMBER AND TOE−IN

  11. CHECK ABS SPEED SIGNAL
