Fuel injector assy (2AZ−FE)(From July, 2003)

REPLACEMENT

  1. WORK FOR PREVENTING GASOLINE FROM SPILLING OUT

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

  3. REMOVE ENGINE COVER SUB−ASSY No.1

  4. DISCONNECT FUEL TUBE SUB−ASSY

  5. REMOVE FUEL DELIVERY PIPE W/INJECTOR

NOTICE: Be careful not to drop the injectors when removing the delivery pipe.

  1. Remove the ventilation hose No. 2.
  2. Disconnect the 4 injector connecters from the injector.
  3. Remove the 2 clamps and wire harnesses from the delivery pipe.
  4.  Remove the 2 bolts and the delivery pipe together with the 4 injectors.
  5. Remove the 2 spacers from the cylinder head.

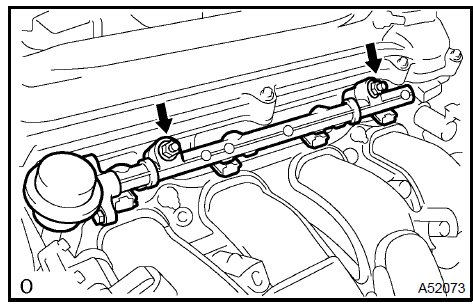

Remove fuel delivery pipe w/injector Remove fuel delivery pipe w/injector

6. REMOVE FUEL INJECTOR ASSY

a. Pull out the 4 injectors from the delivery pipe.

7. INSTALL FUEL INJECTOR ASSY

  1. Install a new insulator to each injector.
  2. Apply a light coat of grease or gasoline to a new O−ring and install to each injector.

c. Apply a light coat of grease or gasoline on the place

c. Apply a light coat of grease or gasoline on the place where a delivery pipe touches the O−ring.

d. To install the fuel injector into the fuel delivery pipe, push the fuel injector while twisting it back and forth.

e. Install the 4 injectors.

NOTICE:

  • Be careful not to twist the O−ring.

  • After installing the fuel injector, check that it turns smoothly. If not, reinstall it with a new O−ring.

 Position the injector connector downward.

8. INSTALL FUEL DELIVERY PIPE W/INJECTOR

8. INSTALL FUEL DELIVERY PIPE W/INJECTOR

  1. Place the 2 spacers in position on the cylinder head.
  2. Place the delivery pipe together with the 4 injectors in position on the cylinder head.

c. Temporarily install the 2 bolts holding the delivery pipe to

c. Temporarily install the 2 bolts holding the delivery pipe to the cylinder.

NOTICE: After installing the fuel injector, check that it turns smoothly.

If not, reinstall it with a new O−ring.

  1. Position the injector connector outward.
  2. Tighten the 2 bolts holding the delivery pipe to the cylinder head.

    Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

  1. CONNECT FUEL TUBE SUB−ASSY

  2. INSPECT FOR FUEL LEAKS

  3. INSTALL ENGINE COVER SUB−ASSY No.1

  4. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOS
