Timing gear case or timing chain case oil seal (2AZ−FE)(From July, 2003)

REPLACEMENT

  1. REMOVE FRONT WHEEL RH

  2.  REMOVE FRONT FENDER APRON SEAL RH

  3. REMOVE ENGINE COVER SUB−ASSY No.1

  4. REMOVE ENGINE MOVING CONTROL ROD W/BRACKET

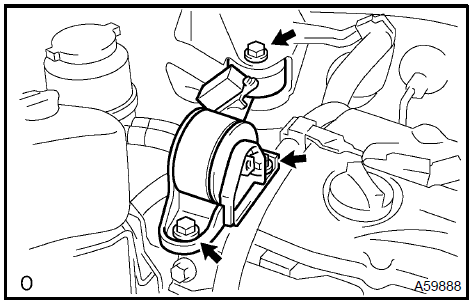

a. Remove the 3 bolts and control rod.

  1. REMOVE ENGINE MOUNTING STAY No.2 RH

  2. REMOVE ENGINE MOUNTING BRACKET No.2 RH

  3. REMOVE FAN AND GENERATOR V BELT

  4. REMOVE CRANKSHAFT PULLEY

a. TMC made: Remove the crankshaft pulley.

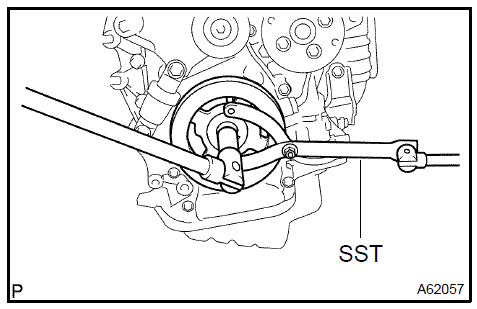

1. Using SST, loosen the pulley bolt.

SST 09213−54015 (91651−60855), 09330−00021

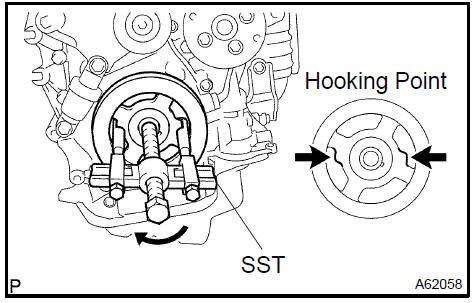

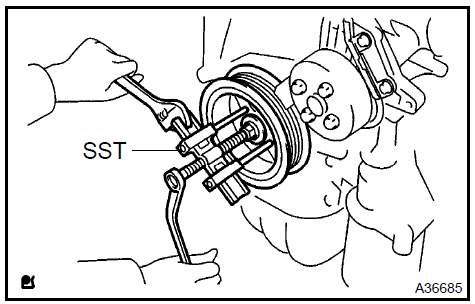

2. Using SST, remove the pulley bolt and pulley.

2. Using SST, remove the pulley bolt and pulley.

SST 09950−50013 (09951−05010, 09952−05010, 09953−05020, 09954−05021)

b. TMMK made:

b. TMMK made: Remove the crankshaft pulley.

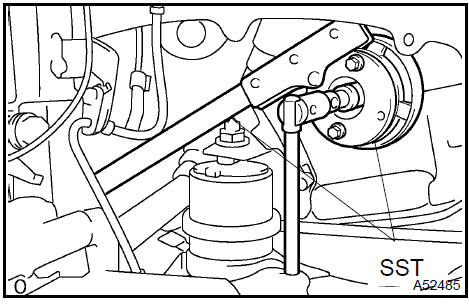

1. Using SST, loosen the pulley bolt.

SST 09960−10010 (09962−01000, 09963−01000)

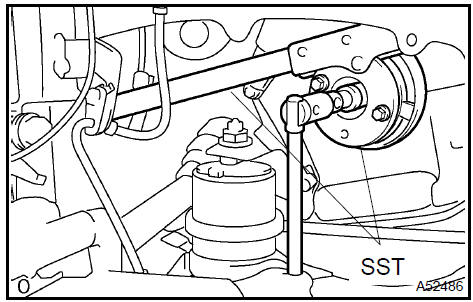

2. Using SST, remove the crankshaft pulley.

2. Using SST, remove the crankshaft pulley.

SST 09950−40011 (09951−04010, 09952−04010, 09953−04030, 09954−04010, 09955−04041, 09957−04010, 91111−51014)

9. REMOVE TIMING GEAR CASE OR TIMING CHAIN

9. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

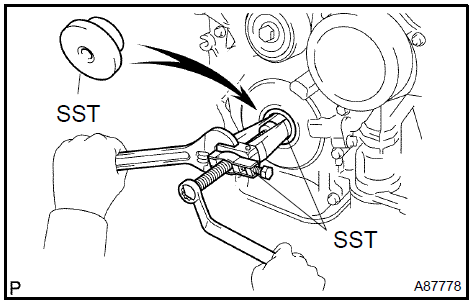

a. Using SST, remove the oil seal.

SST 09308−10010, 09950−60010 (09951−00200)

10. INSTALL TIMING GEAR CASE OR TIMING CHAIN

10. INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

a. Apply MP grease to a new oil seal lip.

NOTICE: Keep the lip free from foreign matter.

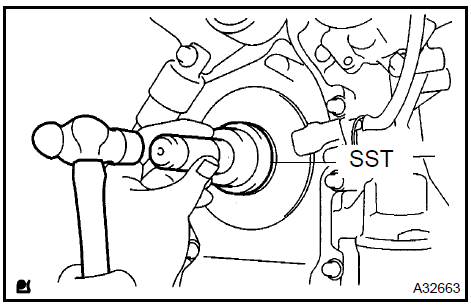

b. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

SST 09223−22010

NOTICE: Wipe off extra grease from the crankshaft.


Install timing gear case or timing chain case oil seal

11. INSTALL CRANKSHAFT PULLEY

a. TMC made: Install the crankshaft pulley.

  1. Align the pulley set key with the key groove of the pulley.

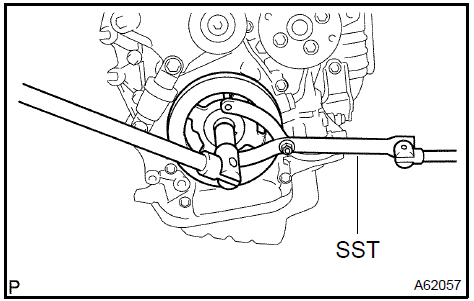

  2. Using SST, install the pulley bolt.

    SST 09213−54015 (91651−60855), 09330−00021, 09960−10010 (09962−01000, 09963−01000) Torque: 170 Nm (1,733 kgfcm, 125 ftlbf)

Install crankshaft pulley

b. TMMK made: Install the crankshaft pulley.

  1. Align the pulley set key with the key groove of the pulley.

  2. Using SST, install the pulley bolt.

    SST 09960−10010 (09962−01000, 09963−01000) Torque: 170 Nm (1,733 kgfcm, 125 ftlbf)

  1. INSTALL FAN AND GENERATOR V BELT

  2. INSTALL ENGINE MOUNTING BRACKET No.2 RH Torque: 52 Nm (531 kgfcm, 38 ftlbf)

  3. INSTALL ENGINE MOUNTING STAY No.2 RH Torque: 64 Nm (653 kgfcm, 47 ftlbf)

  4. INSTALL ENGINE MOVING CONTROL ROD W/BRACKET

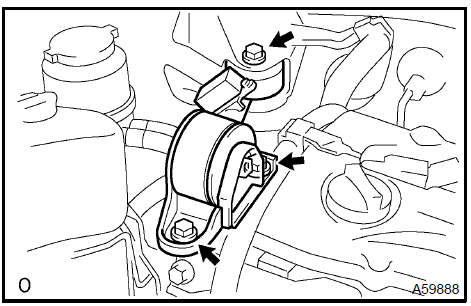

a. Install the control rod with the 3 bolts.

Torque: 64 Nm (653 kgfcm, 47 ftlbf)

  1. INSTALL FRONT WHEEL RH

  2. CHECK FOR ENGINE OIL LEAKS
