 XV30 (2002–2006) Service Manual
Engine control system
ECM (2AZ−FE)

REPLACEMENT

  1. DISCONNECT BATTERY NEGATIVE TERMINAL

  2. REMOVE FRONT DOOR SCUFF PLATE RH

  3. REMOVE COWL SIDE TRIM SUB−ASSY RH

  4. REMOVE INSTRUMENT PANEL UNDER COVER SUB−ASSY No.1

  5. REMOVE INSTRUMENT PANEL SUB−ASSY LOWER

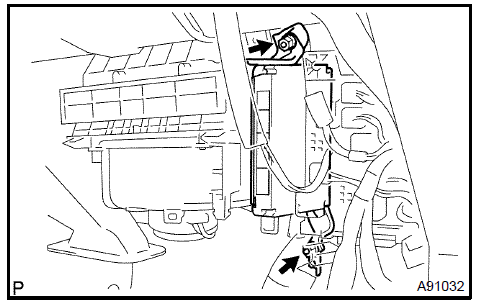

  6. REMOVE ECM

  1. Remove the 2 wire harness clamps.

  2. Disconnect the 5 ECM connectors.

  3. Remove the 2 nuts and ECM.

7. REMOVE ECM BRACKET

7. REMOVE ECM BRACKET

a. Remove the 2 screws and ECM bracket.

8. REMOVE ECM BRACKET No.2

8. REMOVE ECM BRACKET No.2

a. Remove the 2 screws and ECM bracket.

9. INSTALL ECM BRACKET No.2

9. INSTALL ECM BRACKET No.2

a. Install the ECM bracket with the 2 screws.

10. INSTALL ECM BRACKET

10. INSTALL ECM BRACKET

a. Install the ECM bracket with the 2 screws.

11. INSTALL ECM

11. INSTALL ECM

  1. Install the 2 wire harness clamps.

  2. Connect the 5 ECM connectors.

  3. Install the ECM with the 2 nuts. Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

  1. INSTALL INSTRUMENT PANEL SUB−ASSY LOWER

  2. INSTALL INSTRUMENT PANEL UNDER COVER SUB−ASSY No.1

  3. INSTALL COWL SIDE TRIM SUB−ASSY RH

  4. INSTALL FRONT DOOR SCUFF PLATE RH

  5. CONNECT BATTERY NEGATIVE TERMINAL
